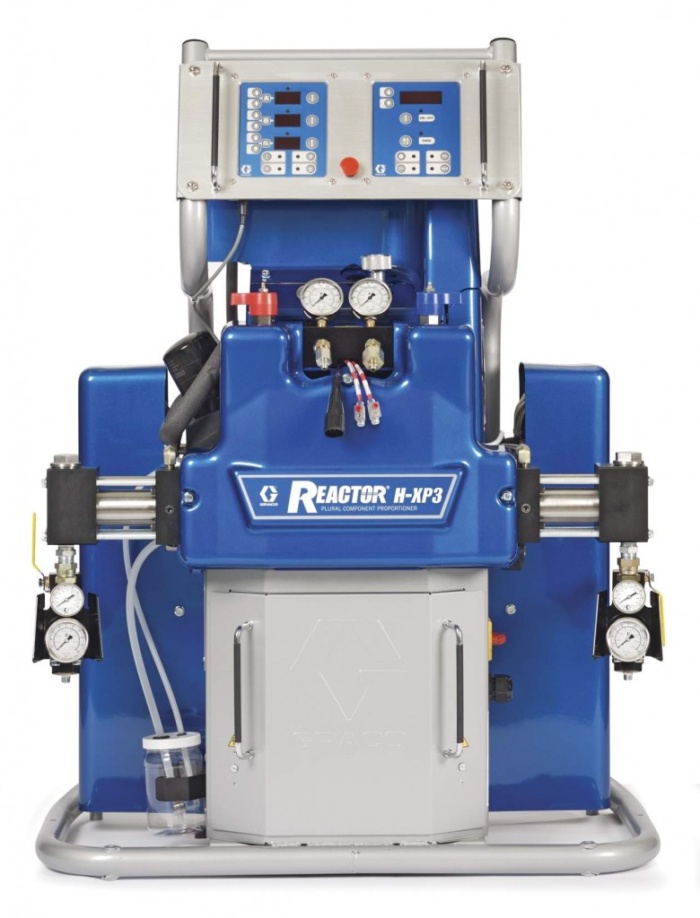

Reactor H-XP3

Graco Reactor H-XP3 is engineered for increased yield, productivity and efficiency, allowing you to get the job done faster on high-volume applications.
  • Ideal for high-volume roofing and insulation projects, in-plant OEM's and high-volume coating applications
  • Temperature and pressure control for accuracy in spraying
  • Remote mountable controls
  • New horizontal pumpline
Specifications Downloads
Heater wattage and power (12kW heater):100A-230V - 1-ph Heater wattage and power (20.4kW heater):95A-230V - 1-ph; 52A-400V - 3-ph Maximum output:2.8 gpm (10.6 lpm) Maximum fluid working pressure:3500 psi (240 bar, 24.0 MPa) Maximum fluid temperature:190° F (88° C) Maximum hose length:410 ft (125 m) Applications: Concrete, potable water, truck bedliners, marine and shipbuilding, wastewater treatment, waterproofing
Repair Parts

Click to view
Flyer

Click to view
Operation Manual

Click to view
