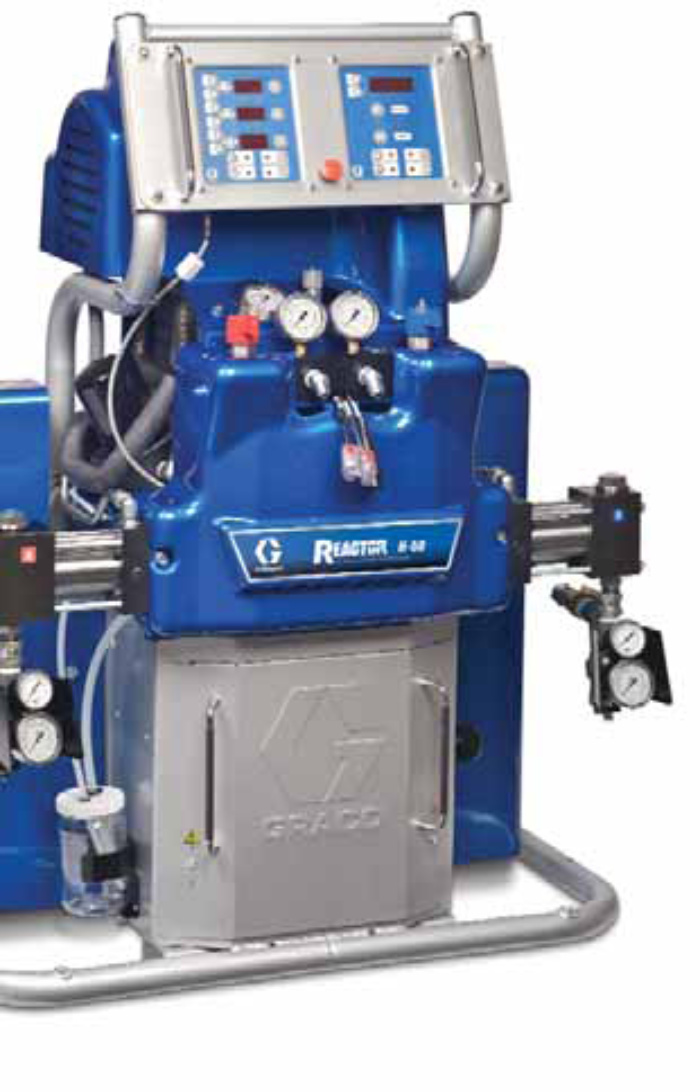

Reactor H-50

Graco reactor H-50 gives the reliability and efficiency on high output jobs that is expected from Graco hydraulic units, as well as offering even greater control and maximum output than the smaller units.
  • Delivers up to 50lbs/min (22.6kg/min)
  • Features 140 size pumps to drive maximum flow rates
  • Separate temperature and motor controls, allow you to quickly set, maintain and monitor performance
  • Hybrid heater design heats material quickly and maintains temperature set-points
Specifications Downloads
Heater wattage and power (12.0kW heater): 100A-230V, 1-ph Heater wattage and power (15.3kW heater): 71A-230V, 3-ph; 41A-400V, 3-ph Maximum output: 52 lb/min (23.6 kg/min) Maximum fluid working pressure: 1700 psi (117 bar, 11.7 MPa - 1-ph); 2000 psi (138 bar, 13.8 MPa - 3-ph) Maximum fluid temperature: 190° F (88° C) Maximum hose length: 410 ft (125 m) Applications: Roof insulation, high-volume residential insulation, high-volume in-plant OEM
Repair and Part Manual

Click to view
Operation Manual

Click to view
