GX-7 DI

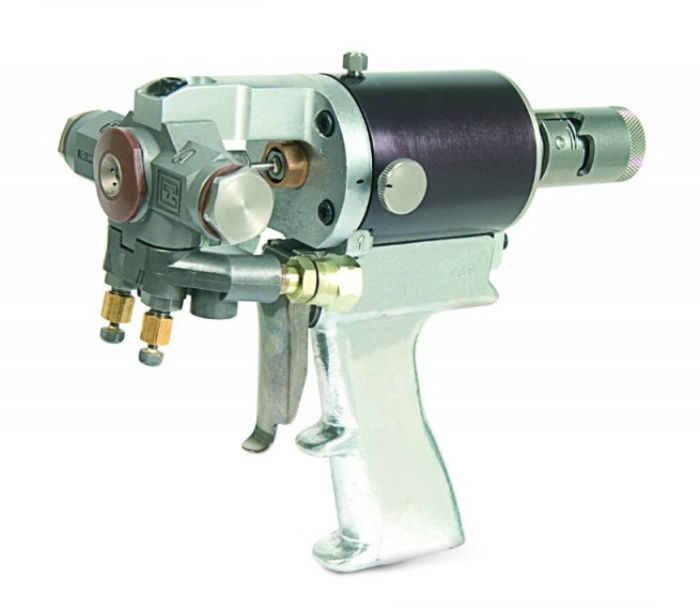

GX-7 DI plural component spray gun for low to medium volume polyurea applications. The
GX7-DI Gun features direct impingement mixing, which provides a superior surface finish for polyurea applications. Its spray tip and gun block feature a non-stick coating for easy maintenance.
- Mechanically self-cleaning eliminates costly solvent flushing
- Screw-in filter design is easy to remove, clean and service
- Rebuild kit available for air cylinder and trigger valve
- Quick-connect coupling block allows fast, clean removal of the gun without any chemical spillage
Materials Sprayed: Coatings Only
Maximum Output:22 lb/min (10 kg/min)
Minimum Output:4 lb/min (1.8 kg/min)
Maximum Fluid Working Pressure:3500 psi (240 bar - 24.0 Mpa)
Maximum working air inlet pressure:125 psi (8.6 bar - 0.86 Mpa)
Maximum Fluid Temperature:200 F (93 C)
Weight:4.1 lb (1.9 kg)
