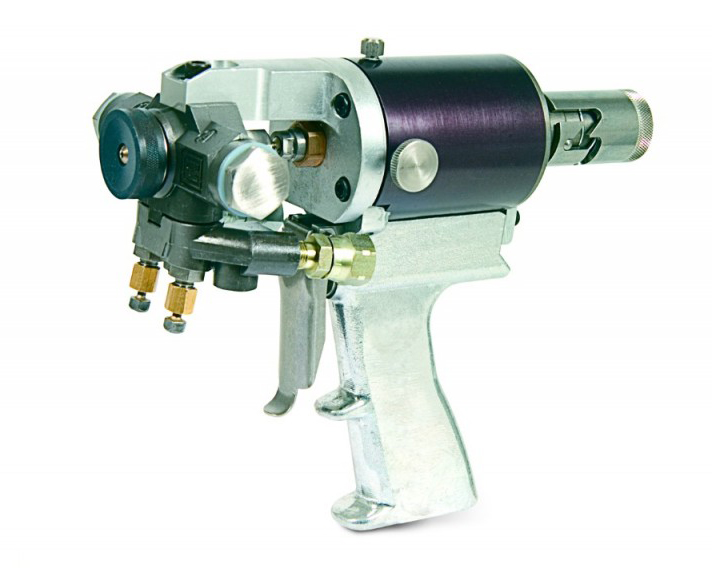

GX-7 – 400
GX-7 - 400 plural component spray gun for low to medium volume polyurea applications. The
GX7-400 Gun is the same as a standard GX-7, but features a shorter stroke length. This is important for fast-setting polyureas because the material spends less time in the gun.
- Mechanically self-cleaning eliminates costly solvent flushing
- Screw-in filter design is easy to remove, clean and service
- Rebuild kit available for air cylinder and trigger valve
- Quick-connect coupling block allows fast, clean removal of the gun without any chemical spillage
Materials Sprayed: Coatings Only
Maximum Output: 8 lb/min (3.6 kg/min)
Minimum Output: 3.5 lb/min (1.6 kg/min)
Maximum Fluid Working Pressure: 3500 psi (240 bar - 24.0 Mpa)
Maximum working air inlet pressure: 125 psi (8.6 bar - 0.86 Mpa)
Maximum Fluid Temperature: 200 F (93 C)
Weight: 4.1 lb (1.9 kg)
